DeltaTRAK Pulse / Temperature LoggerPT3
  • 仪器名称：Pulse / Temperature Logger
  • 仪器品牌：DeltaTRAK
  • 仪器型号：PT3
  • 送货时间：48小时内
  • 标准价格：不详
  • 本站售价：洽询
  • 关键参数：Pulse / Temperature Logger,The DeltaTRAK PT3 is a versatile data logger designed for easy counting and recording of switch contact closures voltage pulses. It has two input channels.
加入购物车 加入收藏夹 无软件下载 无资料下载 厂商介绍

性能参数介绍

软件下载：       无

资料下载：        无

产品介绍

PT3

Pulse / Temperature Logger

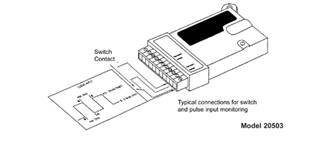

Model 20503, PT3 Pulse Temperature Logger, Electronic Multifunction Data Logger,

The DeltaTRAK PT3 is a versatile data logger designed for easy counting and recording of switch contact closures voltage pulses. It has two input channels
each with three selectable frequency ranges.

Applications: Monitoring flow conditions, energy use, wind speed, RPM, and environmental conditions.

SPECIFICATIONS:


No. of channels: Three. (One internal thermistor and two external inputs for externally generated pulse signals or dry switch contact closures)
Ranges: 32 pulses/second; 64 pulses/second; 128 pulses/second
Minimum pulse width: 4 milliseconds
Switch Contact Closure Input: Input type: Uncommitted switch or relay contacts.
Logic Inputs: Logic type: Active logic signals. Input voltage: Low= 0 to 0.5 volts (DC). High= 4.5 to 24 volts (DC).
Input Impedance: 750 K ohms.
