DeltaTRAK In-Transit Data LoggerFlashLink® VU
  • 仪器名称：In-Transit Data Logger
  • 仪器品牌：DeltaTRAK
  • 仪器型号：FlashLink® VU
  • 送货时间：48小时内
  • 标准价格：不详
  • 本站售价：洽询
  • 关键参数：Ideal device for documenting storage and transport condition of temperature-sensitive products.Large, easy to read LCD display
加入购物车 加入收藏夹 无软件下载 无资料下载 厂商介绍

性能参数介绍

下载说明

软件下载：      无

资料下载：       无

产品介绍

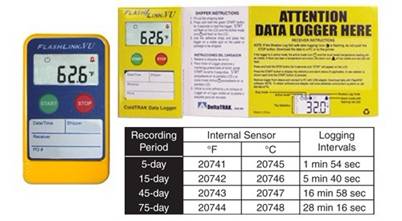

FlashLink® VU

In-Transit Data Logger

FlashLink VU with high visibility locator card
Applications: Ideal device for documenting storage and transport condition of temperature-sensitive products.

*                                             Large, easy to read LCD display

*                                             Trip history statistics available on LCD

*                                             Patented Shadow Log feature guarantees data even if the operator fails to start the unit, single-use

*                                             Print data using Graphics Printer, FlashPDF software or download to PC

*                                             NIST traceable and CE Mark

*                                             IP56 water-resistant rating

FlashLink VU In-Transit Data Logger

Feature

Specification

DeltaTRAK manufactures products under an ISO 9000 registered quality management system

Measurement Range

-40°F to 150°F (-40°C to 65°C)

Temperature Resolution

0.1°F/°C

Accuracy

±0.5°F from 14°F to 77°F (±.5°C from -10°C to 25°C);
±1.0°F above 77°F (±1.0°C above 25°C)
±1.0°F below 14°F (±1.0°C below -10°C)

Data Capacity

3824 points

Data Download Time

5 seconds typical for 3800 points

Factory Programmable

High & Low levels over entire range, displayed on LCD

Battery

(CR2032) 3V Lithium/18 months

Dimensions

1.962" x 3.423" x .575" (50mm x 87mm x 15mm)

Casing

ABS plastic

Weight

1.6 oz. (45.36 grams)

Shock Resistance

Withstands 3-foot (1 meter) drop to hard surface

Certification

CE Mark, NIST traceable, ROHS Compliant

Display

LCD, Red LED Alarm

Waterproof Rating

IP56

Storage Conditions

-4°F to 122°F (-20°C to 50°C) 0% to 95% RH w/o condensation

Min. System Requirements

Windows PC with 2000, XP or NT operating system

Software Requirements

In-Transit FlashLink CT Software package #20178, and/or
FlashPDF software package #20163 (both include CT-USB adapter

电源标准



标准配置

可选附件



标准证书
